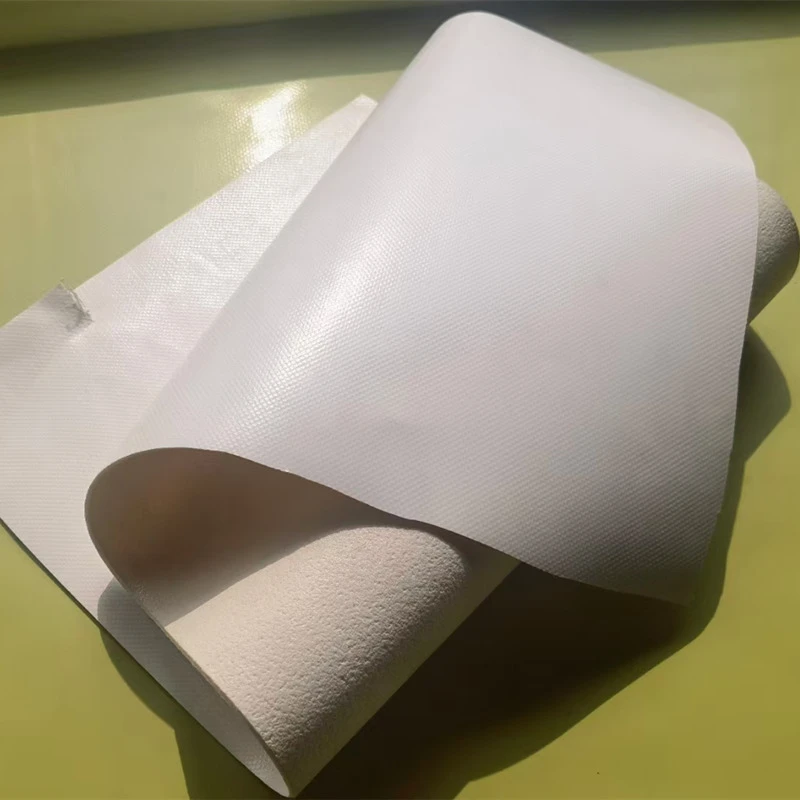

A Heat Insulation PVC Tarp is a heavy-duty, flexible covering made from polyvinyl chloride (PVC)-coated fabric with added thermal insulation properties. It is designed to retain heat, block radiant energy, and protect against extreme temperatures in industrial, construction, and marine applications.
Features
Material & Construction
Base Fabric:
Polyester or fiberglass mesh – High tensile strength and tear resistance.
PVC Coating – Waterproof, UV-resistant, and chemically stable.
Insulation Layer:
Aluminum foil laminate – Reflects radiant heat (up to 90% reflectivity).
Foam or fiber padding – Adds thermal resistance (R-value varies).
Reinforcements:
Double-stitched seams with webbing for durability.
Grommets/D-rings (stainless steel or brass) for secure fastening.
Thermal Performance
Reflective surface – Reduces heat absorption in hot environments.
Low thermal conductivity – Prevents heat transfer (keeps interiors warm/cold).
Operating range: -40°C to +120°C (-40°F to +250°F).
Durability & Protection
Fire-resistant (optional) – Meets EN 13501, DIN 4102, or NFPA 701.
UV-stabilized – Resists sun degradation for outdoor use.
Chemical & abrasion-resistant – Suitable for industrial environments.
Customization Options
Thickness: 0.3mm to 1.5mm (varies by insulation needs).
Colors: Silver (reflective), black (heat absorption), or custom prints.
Sizes: Modular or made-to-order (e.g., 2m x 3m up to 20m x 50m).
Advantages
Energy Efficiency
Reduces heating/cooling costs by blocking heat transfer.
Weatherproof
Waterproof, wind-resistant, and snow-shedding.
Versatile Applications
Used in construction, warehouses, trucking, and marine.
Lightweight & Portable
Easier to handle than rigid insulation panels.
Long Lifespan
5–10 years with proper maintenance.
Easy Installation
Can be strapped, clamped, or tied down quickly.
Specification
|
Parameter |
Specification |
|
Material |
PVC-coated polyester + aluminum foil/foam insulation |
|
Thickness |
0.5mm–1.2mm (total with insulation) |
|
Weight |
500–1500g/m² (varies by thickness) |
|
Tensile Strength |
1500–5000 N/5cm (warp & weft) |
|
Thermal Reflectivity |
Up to 90% (aluminum layer) |
|
R-Value |
0.5 – 2.0 (depends on insulation layer) |
|
Temperature Range |
-40°C to +120°C |
|
Fire Rating |
B1 (DIN 4102), M1 (NFPA 701) |
|
UV Resistance |
5+ years (with UV inhibitors) |
|
Water Resistance |
100% waterproof (≥ 3000mm hydrostatic head) |
|
Grommet Spacing |
Every 0.5m–1m (reinforced edges) |
|
Certifications |
ISO 9001, CE, REACH, RoHS |
Application Scenarios
